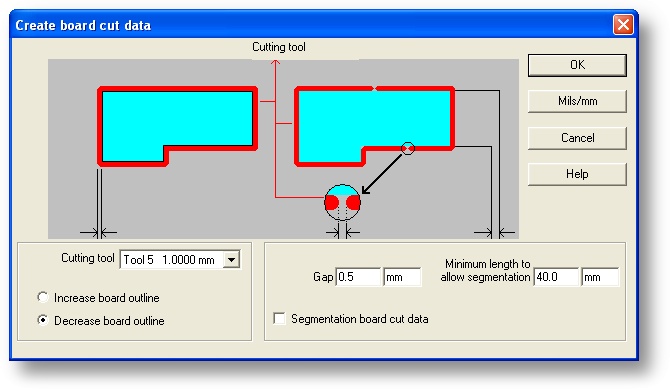

Create board cut data

With this function selected traces/lines which form a poly line, can be converted

to board cut data and will be added to the corresponding milling layer.

Board cut data segmentation

Place gap in board cut data

Note: If you want to cut circular forms, do not use segmentation, better

is to do this later by using the Place gap in board cut data function

In the Pro version, before entering this screen, it will scan the selection for Gaps, when

found it will mark the Gaps and you then have the option to close the gap by selecting the

two lines and pressing g.
