Save milling data (with an offset)

Top  Previous  Next



menu-bar

oke

File > Save milling data (with an offset)

button-bar

cross


hot-key

cross




First select the layer to be saved.



Here you may set an offset, although it is better not to do so.

A good place to use offsets is the milling machine itself.

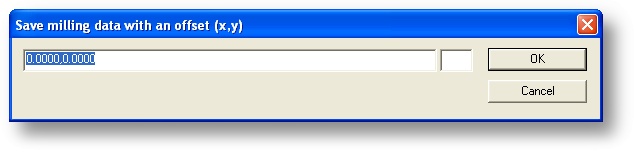

Clip51

You may type an offset for X, Y after pressing OK you will get the appropriate dialogbox.
