Get info about objects

Sometimes it would be handy if we could get some information about the size of objects, like drill holes or the width of a trace.

The following feature is provided just for that purpose

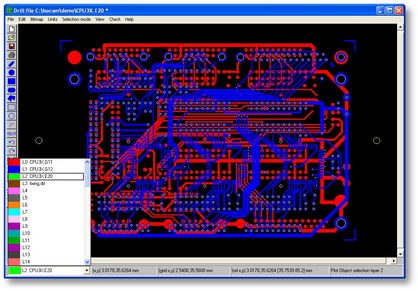

Clip135

•	Select layer 2: CPU3X.E20

•	This is the layer that holds the drill information

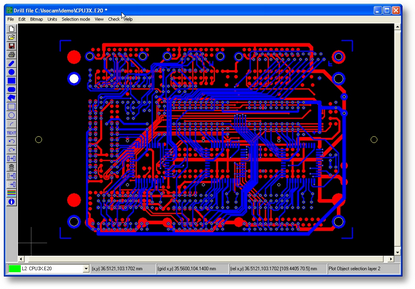

Clip136

•	Click on a yellow circle (this is a drill hole)

•	Then type the letter 'i' (from information)

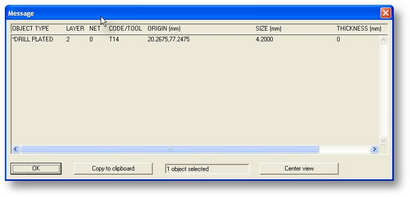

Clip137

•	Now you see the information about the selected item

•	You may select more then one item at the same time.

•	Press Center view, now your selection is zoomed in.

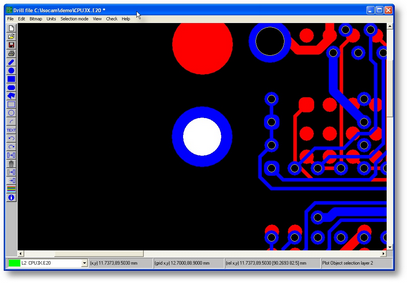

Clip138
