DRC current layer

Top  Previous  Next

menu-bar

oke

Extra >DRC current layer

button-bar

cross


hot-key

cross

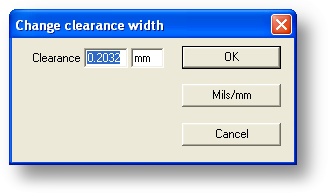

In the next dialog box the global clearance can be adjusted.

Clip97

After pressing OK the design rules of the plot objects on the current layer will be checked.

The objects with an error will be high lighted.

You can remove the displayed errors in:



Edit > Remove errors
